BRD30R0 ABBA BLOCK
The accuracy of linear guides can be divided into three types: Running parallelism, Tolerance, and Difference
of heights and widths. (As several blocks are used on one rail, or as several shafts are installed on the same
surface, the Difference of heights and widths of each model are specified.
Description
BRD30R0

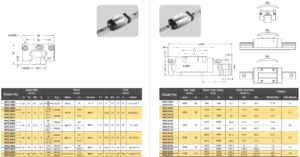

| Model No. | Assembly(nn) | Block(mn) | Rail(nm) | ||||||||||||
| H | W | 2 | 目 | L | BxJ | MQx | Ld | oil hole | Td | 0 | w] | Hd | dxDxh | ||
| BRC15RO | 28 | 34 | 9.5 | 4.6 | 66 | 26×26 | M4x6 | 40 | 3o | 8.3 | 5 | 15 | 14 | 60 | 4.5×7.5×5.8 |
| BRD15RO | 56 | ||||||||||||||
| BRC20RO | 30 | 44 | 12 | 5 | 77.8 | 32×36 | M5x8 | 48.8 | M6x1 | 7 | 15.6 | 20 | 18 | 60 | 6×9.5×9.0 |
| BRD20R0 | 67.8 | ||||||||||||||
| BRC20LR | 92.4 | 32×50 | 63.4 | ||||||||||||
| BRD20LR | 82.4 | ||||||||||||||
| BRC25RO | 40 | 48 | 12.5 | 7 | 88 | 35×35 | M6x10 | 57 | M6x1 | 11.8 | 15.6 | 23 | 22 | 60 | 7x11x9.5 |
| BRD25R0 | 78 | ||||||||||||||
| BRC25LR | 110.1 | 35×50 | 79.1 | ||||||||||||
| BRD25LR | 100.1 | ||||||||||||||
| BRC30R0 | 45 | 60 | 16 | 9 | 109 | 40×40 | M8x13 | 72 | M6x1 | 10 | 15.6 | 28 | 26 | 80 | 9x14x12.5 |
| BRD30RO | 99 | ||||||||||||||
| BRC30LR | 131.3 | 40×60 | 94.3 | ||||||||||||
| BRD30LR | 121.3 | ||||||||||||||
| BRD35RO | 55 | 70 | 18 | 9.5 | 109 | 50×50 | M8x13 | 80 | M6x1 | 15 | 15.6 | 34 | 29 | 80 | 9x14x12.5 |
| BRD35LR | 134.8 | 50×72 | 105.8 | ||||||||||||
| BRD45RO0 | 70 | 86 | 20.5 | 14 | 138.2 | 6Ox60 | M10x16.5 | 105 | M8x1 | 18.5 | 16 | 45 | 38 | 105 | 14x20x17.5 |
| BRD45LR | 163 | 60×80 | 129.8 | ||||||||||||
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of ABBA products.
Own large spot inventory , Such as ABBA LM Guide , ABBA Block , IKO Ball Splines ,ABBA Ball Screws
There are many types of ABBA products,we can not upload all of them at present.
If you have any demands for BRD30R0,feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
Product Inquire Now
