EGR20T HIWIN LINEAR GUIDEWAY RAIL

The HIWIN linear guideways of the EG series with four ball tracks have a low installation height, making them ideally suited to applications with a low installation space. Despite this, the EG series has the same properties as the HG series – good loading capacity, low displacement forces and high efficiency. The ball retainers prevent the balls from falling out when the block is pulled off the rail during assembly.

The models of the QE series with Synch Motion™ technology offer all the advantages of the standard series EG. Controlled movement of the balls at a defined distance also results in improved synchronous performance, higher reliable travel speeds, extended lubrication intervals and less running noise. Since the installation dimensions of the QE blocks are identical to those of the EG blocks, they are also fitted on the EGR standard rail and can therefore be interchanged with ease.

The EG raisl are used both the EG and QE blocks.

INQUIRE NOW

"*" indicates required fields

Category: HIWIN Tags: EGR15U, EGR30U, EGR15T, EGR20T
Share:
  • Description
  • Shipping & Delivery
  • 全局选项卡2
  • 全局选项卡3
Description

EGR20T HIWIN LINEAR GUIDEWAY RAIL

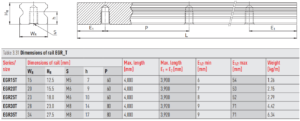

Dimensions of rail EGR T
Series/sizeDimensions of rail [mm]Max. length[mm]Max. length E1=E2 mmE min mmE max mmWeight kg/m
WRHRShP
EGR15T1512.5M57604,0003,9006541.26
EGR20T2015.5M69604,0003,9007532.15
EGR25T2318M610604,0003,9008522.79
EGR30T2823M814804,0003,9209714.42
EGR35T3427.5M817804,0003,9209716.34

We also have excellent logistics transportation system , It is very convenient for demands of global marketIf you have any demands for EGR20T, feel free to contact us online or leave a message .There are many types of HIWIN products,we can not upload all of them at present.Own large spot inventory , Such as HIWIN LM Guide , HIWIN Block , HIWIN Ball Splines ,HIWIN Ball Screws , HIWIN Cam Follower , ect…  WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of HIWIN products.
