Home THK HSR-LA Series Japan High Precision THK Industrial CNC XYZ LM Rail Block Linear Guide HSR30LA
HSR-A Series Japan High Precision THK Industrial CNC XYZ LM Rail Block Linear Guide HSR15A/20A/25A/30A/35A/45A
Back to products
HSR45R,HSR45R1SS Japan High Precision THK Industrial CNC 45mm Linear Guide Rail
Click to enlarge

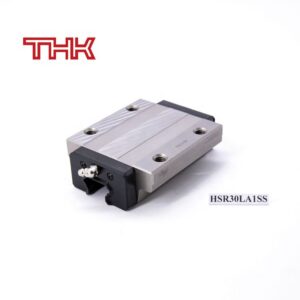

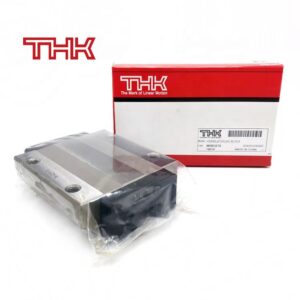

HSR-LA Series Japan High Precision THK Industrial CNC XYZ LM Rail Block Linear Guide HSR30LA

HSR-A /HSR-LA
The flange of its LM block HSR-A has tapper holes.A global standard size LM Guide in which each row of balls is placed at a contact angle of 45° so that the rated loads applied to

the LM block are uniform in the four directions (radial, reverse radial and lateral directions), enabling the LM Guide to be used in all orientations.
INQUIRE NOW

"*" indicates required fields

Category: THK
Share:
  • Description
  • Shipping & Delivery
  • 全局选项卡2
  • 全局选项卡3
Description
Linear Guide Description
HSR-LA Series Japan High Precision THK Industrial CNC XYZ LM Rail Block Linear Guide HSR20LA/25LA/30LA/35LA/45LA
The LM Linear Guide (Linear Motion Guide) is our main product, incorporating a part with a linear rolling motion into practical usage. It realizes the development of high-precision, high-rigidity, energy-saving, high-speed machines with long service lives.

Linear Guide Features: 1.Ideal Four Raceway, Cir cular-Arc Groove, Two Point Contact Structure 2.Superb error-absorbing capability with the DF design 3.Accuracy Averaging Effect by Absorbing Mounting Surface Error 4.Large Permissible Load and High Rigidity 5.Low Friction Coeffificient 6.Wide array of options (QZ lubricator, Laminated contact scraper LaCS, etc.) Linear Guide Major Applications: 1.Surface grinder 2.Electric discharge machine 3.High-speed transfer equipment 4.NC lathe 5.Injection molding machine 6. Woodworking machine 7.Semiconductor manufac turing equipment 8. Inspection equipment 9.Food-related machine 10.Medical equipment 11.CNC machine
Linear Guide Data
HSR-A /HSR-LA
The flange of its LM block HSR-A has tapper holes.A global standard size LM Guide in which each row of balls is placed at a contact angle of 45° so that the rated loads applied to

the LM block are uniform in the four directions (radial, reverse radial and lateral directions), enabling the LM Guide to be used in all orientations.
Model code
Height
Width
Length
Pitch
LM block Mass
M
W
L
B
C
F
kg
HSR15A
24
47
56.6
38
30
60
0.2
HSR20A
30
63
74
53
40
60
0.35
HSR20LA
30
63
90
53
40
60
0.47
HSR25A
36
70
83.1
57
45
60
0.59
HSR25LA
36
70
102.2
57
45
60
0.75
HSR30A
42
90
98
72
52
80
1.1
HSR30LA
42
90
120.6
72
52
80
1.3
HSR35A
48
100
109.4
82
62
80
1.6
HSR35LA
48
100
134.8
82
62
80
2
HSR45A
60
120
139
100
80
105
2.8
HSR45LA
60
120
170.8
100
80
105
3.3

Product Inquire Now

"*" indicates required fields

Shipping & Delivery

Free Delivery

Orders from 10,000 USD will be shipped free of charge within Southeast Asia!

Delivery Time: Ready for Shipping within 24h

We try hard to make as much orders as possible ready for shipping within 24 hours (after receiption of payment), because we generally offer only items in our online shop which we have currently on stock. The independent official seal for excellence in shipment always shows you, have fast we are currently working (make your order ready for pick-up by our logistics partner).

Delivery areas:

We deliver to all over the world , for example:Germany, Austria, Switzerland and Belgium, Bulgaria, Denmark, Estonia, Finland, France, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Liechtenstein, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Russia, Sweden, Switzerland, Slovakia, Slovenia, Spain, Czech Republic, Hungary, USA. Please find information about delivery costs below.

Returns

If a product does not meet your expectation for any reason, you can return the product without ifs and buts. To make it even more easy for you, we recommend to use the attached return form and the return stickers free of charge within 30 days of receipt. Or contact our online service anytime , we will try to solve problem ASAP .
