Japan IKO MX45 Linear Bearing Block Linear Guide Rail Block motion guide slide guide
IKO Lube Linear Roller Way Super MX is a high performance roller type linear motion rolling
guide, featuring high reliability, high rigidity, high accuracy and smooth motion which are required
from machine tools, semiconductor manufacturing and liquid crystal manufacturing equipments.
Cylindrical rollers are incorporated as rolling elements in four rows, arranged in parallel to each other.
Owing to its small elastic deformation, stable operation is ensured even under heavy or fluctuating
loads. This series is also suitable for applications with vibration and shocks. With original C-Lube technology, its performance makes us different from others, providing
superior cost performance for your machines. Maintenance free for 20,000km or 5 years minimizes
the amount of lubricant required and contributes to the global environment protection.
Description

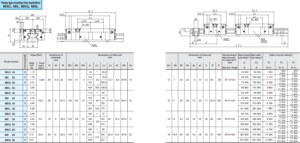

| Model number | MassSlideunitkg | (Ref.)Trackrail(2)kg/m | DinH | hensiorassemblymmH | ofN | Wa | Ws | Wa | L1 | DiL2 | mensioL3 | ns of smmL5 | lide una1 | M1 | Ha |
| MXC35 | 1.13 | 6.88 | 48 | 6.5 | 33 | 100 | 41 | 9 | 92 | … | 46.6 | 12.7 | 8.5 | M10 | 13 |
| MX35 | 1.76 | 124 | 62 | 78.6 | |||||||||||
| MXG35 | 2.41 | 152 | 106.6 | ||||||||||||
| MXL35 | 3 | 184 | 100 | 138.6 | |||||||||||
| MXC45 | 2.11 | 10.8 | 60 | 8 | 37.5 | 120 | 50 | 10 | 114 | 一 | 59 | 17.5 | 10.5 | M12 | 15 |
| MX45 | 3.26 | 154 | 80 | 99 | |||||||||||
| MXG45 | 4.6 | 194 | 139 | ||||||||||||
| MXL45 | 5.66 | 234 | 120 | 179 | |||||||||||
| MXC55 | 3.49 | 14.1 | 70 | 9 | 43.5 | 140 | 58 | 12 | 136 | 一 | 72 | 20 | 12.5 | M14 | 17 |
| MX55 | 5.42 | 184 | 95 | 120 | |||||||||||
| MXG55 | 7.93 | 238 | 174 | ||||||||||||
| MXC65 | 7.18 | 22.6 | 90 | 12 | 53.5 | 170 | 71 | 14 | 180 | 一 | 95 | 26.3 | 14.5 | M16 | 23 |
| MX65 | 11.5 | 244 | 110 | 159 | |||||||||||
| MXG65 | 16 | 308 | l223 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of IKO products.Own large spot inventory , Such as IKO LM Guide , IKO Block , IKO Ball Splines ,IKO Ball Screws , IKO Cam Follower , ect…
There are many types of IKO products,we can not upload all of them at present.
If you have any demands for MX45,feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
