Japan LWE35 Q IKO Linear Guide Rail Block
IKO Linear Way E is a linear motion rolling guide, featuring a compact slide unit which performs
endless linear motion along a track rail. Two rows of steel balls are arranged in four point contact
with the raceways. This design ensures stable high accuracy and rigidity in operations even under
fluctuating loads with changing direction and magnitude or complex loads. A wide range of variations
in shapes and sizes are available. This series is a compact type suitable for general applications.
Description

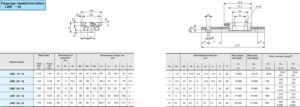

| Model number | MassSlideunitkg | (Ref.)Trackrailkg/m | DinH | nensionassemblymmH | s ofN | W2 | Ws | Wa | DimeL1 | nsionsmL2 | of slidemL3 | unitL4 |
| LWE 15…Q | 0.18 | 1.57 | 24 | 5 | 18.5 | 52 | 41 | 5.5 | 57 | 26 | 38.4 | 61 |
| LWE 20…Q | 0.3 | 2.28 | 28 | 5 | 19.5 | 59 | 49 | 5 | 66.5 | 32 | 44 | 79 |
| LWE 25…Q | 0.56 | 3.09 | 33 | 6 | 25 | 73 | 60 | 6.5 | 83 | 35 | 56 | 95 |
| LWE 30…Q | 0.97 | 5.04 | 42 | 10 | 31 | 90 | 72 | 9 | 95.5 | 40 | 64.8 | 106 |
| LWE 35…Q | 1.53 | 6.84 | 48 | 11 | 33 | 100 | 82 | 9 | 109.5 | 50 | 76.6 | 122 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of IKO products.Such as IKO LM Guide , IKO Block , IKO Ball Splines ,IKO Ball Screws , IKO Cam Follower , ect…
We also have excellent logistics transportation system , It is very convenient for demands of global market .Own large spot inventory .
There are many types of IKO products,we can not upload all of them at present,If you have any demands for LWE35 Q ,feel free to contact us online or leave a message
