Japan LWHD35B IKO Linear Guide Rail Block

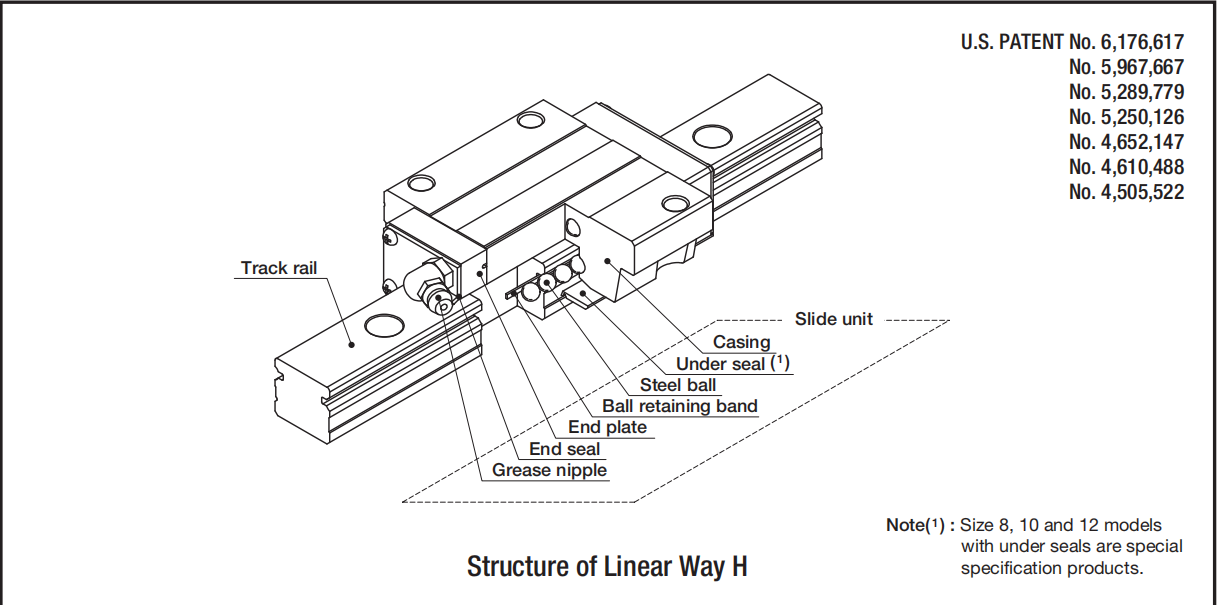

IKO Linear Way H incorporates two rows of large diameter steel balls in four point contact with the
raceways and provides stable high accuracy and rigidity in operations even under fluctuating loads
with changing direction and magnitude or complex loads. This series features the largest load ratings

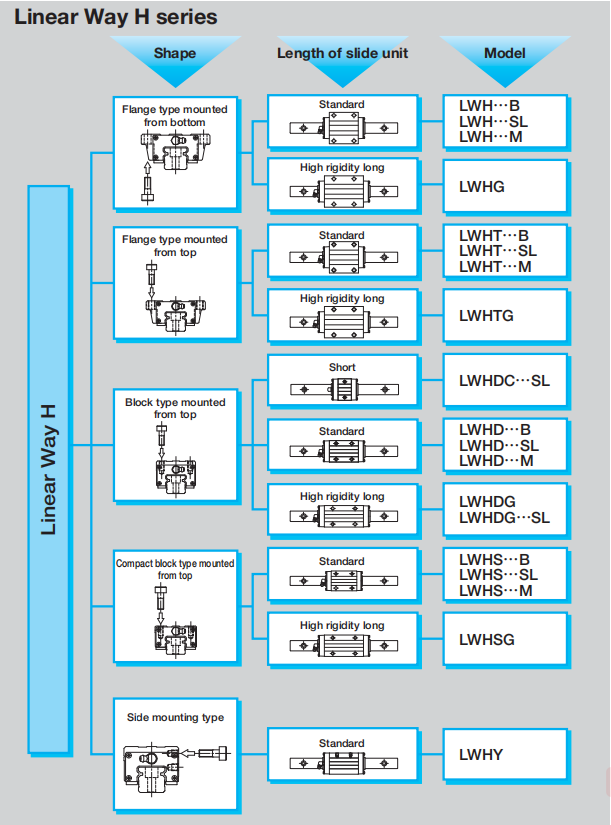

and rigidity among all ball types. A wide range of variations in shapes and sizes are available for
selecting a model suitable for each application.
Description

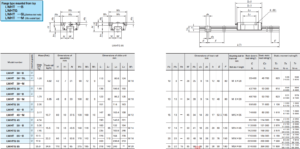

| Model number | MassSlideunitkg | s(Ref.)Trackrailkg/m | DimaH | ensiorssemkmmH | ns oflyN | W2 | Ws | Wa | DimenL1 | isions cmmL2 | f slide uL3 | nitL4 | M1×depth |
| LWHD30B | 1.12 | 4.82 | 45 | 7 | 16 | 60 | 40 | 10 | 113 | 40 | 80.6 | 124 | M8 ×16 |
| LWHD30M | |||||||||||||
| LWHDG30 | 1.44 | ||||||||||||
| LWHD35B | 1.74 | 6.85 | 55 | 8 | 18 | 70 | 50 | 10 | 123 | 50 | 86.2 | 135 | M8 ×16 |
| LWHD35M | |||||||||||||
| LWHDG35 | 2.26 | ||||||||||||
| LWHD45B | 3.3 | 10.7 | 70 | 10 | 20.5 | 86 | 60 | 13 | 147 | 60 | 103.4 | 158 | M10×20 |
| LWHD45M | |||||||||||||
| LWHDG45 | 4.57 | ||||||||||||
| LWHD55B | 5.36 | 15.5 | 80 | 13 | 23.5 | 100 | 75 | 12.5 | 183 | 75 | 132 | 194 | M12×25 |
| LWHDG55 | 7.2 | ||||||||||||
| LWHD65B | 9.8 | 22.2 | 90 | 14 | 31.5 | 126 | 76 | 25 | 229 | 70 | 164 | 239 | M16×30 |
| LWHDG65 | 14.3 |
We also have excellent logistics transportation system , It is very convenient for demands of global market .Own large spot inventory .WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of IKO products.Such as IKO LM Guide , IKO Block , IKO Ball Splines ,IKO Ball Screws , IKO Cam Follower , ect…
There are many types of IKO products,we can not upload all of them at present,If you have any demands for LWHD35B,feel free to contact us online or leave a message
