SHS25LR THK LINEAR BLOCK

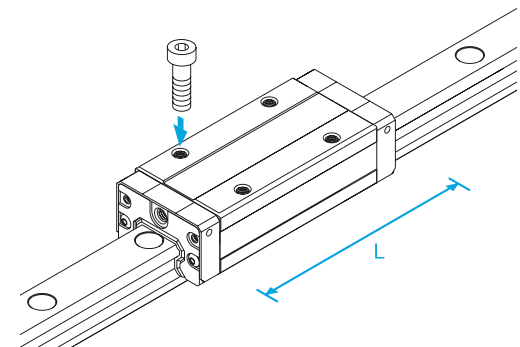

The LM block has the same cross-sectional
shape as model SHS-R, but has a longer overall
LM block length (L) and a greater rated load.
Description
SHS25LR THK LINEAR BLOCK ， welcome inquiry .
| Model No. | Outer dimensions | LM block dimensions | Pibt hole for side nipple* • | Mass | |||||||||||||
| Height M | Width W | Length L | B | C | SXf | L | T | K | N | E | Grease nipple | eo | fo | Do | LM block kg | LM rail kg/m | |
| SHS 15R | 28 | 34 | 64.4 | 26 | 26 | M4X5 | 48 | 5.9 | 25 | 9.5 | 5.5 | PB1021B | 4 | 8 | 3 | 0.22 | 1.3 |
| SHS 25R SHS 25LR | 40 | 48 | 92 109 | 35 | 35 50 | M6X8 | 71 88 | 8 | 34.2 | 11.5 | 12 | B-M6F | 6 | 9.5 | 3 | 0.66 0.8 | 3.2 |
| SHS 30R SHS 30LR | 45 | 60 | 106 131 | 40 | 40 60 | M8X10 | 80 105 | 8 | 38 | 11 | 12 | B-M6F | 5.5 | 9 | 5.2 | 1.04 1.36 | 4.5 |
| SHS 35R SHS 35LR | 55 | 70 | 122 152 | 50 | 50 72 | M8X12 | 93 123 | 14.7 | 47.5 | 15 | 12 | B-M6F | 6.5 | 12. 5 | 5.2 | 1.8 2.34 | 6.2 |
| SHS 45R SHS 45LR | 70 | 86 | 140 174 | 60 | 60 80 | M10X17 | 106 140 | 14.9 | 61.1 | 20.5 | 16 | B-PT1/8 | 8 | 18 | 5.2 | 3.24 4.19 | 10.4 |
| SHS55R SHS 55LR | 80 | 100 | 171 213 | 75 | 75 95 | M12X18 | 131 173 | 19.4 | 67.3 | 21 | 16 | B-PT1/8 | 10 | 18 | 5.2 | 5.05 6.57 | 14.5 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands ， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
