SR 15SB/SBM ORIGINAL PRODUCTS BLOCK
A space-saving type whose LM block has the
same cross-sectional shape as model SR-TB,
but has a smaller overall LM block length (L).
Description
SR 15SB/SBM THK ORIGINAL PRODUCTS BLOCK.

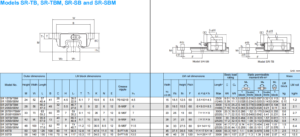

| Model No. | Outer dimensions | LM block dimensions | Ha | Mass | ||||||||||||
| Height M | Wdth W | Lengti L | B | C | H | L | T | Ti | K | N | E | Grease nipple | LM block kg | LM rail kg/m | ||
| SR 15TB/TBM SR 15SB/SBM | 24 | 52 | 57 40.4 | 41 | 26 | 4.5 | 39.5 22.9 | 6.1 | 7 | 19.5 | 6 | 5.5 | PB1021B | 4.5 | 0.2 0.15 | 1.2 |
| SR20TB/TBM SR20SB/SBM | 28 | 59 | 66.2 47.3 | 49 | 32 | 5.5 | 46.7 27.8 | 8 | 9 | 22 | 6 | 12 | B-M6F | 6 | 0.4 0.3 | 2.1 |
| SR25TBY/TBMY SR25SBY/SBMY | 33 | 73 | 83 59.2 | 60 | 35 | 7 | 59 35.2 | 9.1 | 10 | 26 | 7 | 12 | B-M6F | 7 | 0.6 0.4 | 2.7 |
| SR 30TB/TBM SR 30SB/SBM | 42 | 90 | 96.8 67.9 | 72 | 40 | 9 | 69.3 40.4 | 8.7 | 10 | 32.5 | 8 | 12 | B-M6F | 9.5 | 1.1 0.8 | 4.3 |
| SR 35TB/TBM SR 35SB/SBM | 48 | 100 | 111 77.6 | 82 | 50 | 9 | 79 45.7 | 11.2 | 13 | 36.5 | 8.5 | 12 | B-M6F | 11.5 | 1.5 1 | 6.4 |
| SR 45TB | 60 | 120 | 126 | 100 | 60 | 11 | 90.5 | 12.8 | 15 | 47.5 | 11.5 | 16 | B-PT1/8 | 12.5 | 2.5 | 11.3 |
| SR 55TB | 68 | 140 | 156 | 116 | 75 | 14 | 117 | 15.3 | 17 | 54.5 | 12 | 16 | B-PT1/8 | 13.5 | 4.2 | 12.8 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands ，SR 15SB/SBM , feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
