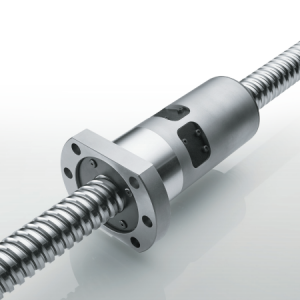

THK High-Speed Ball Screw For Machine Tools BSM4030B
Feature 1:High-speed performance
Signifificantly improves the DN value with a newly developed circulation structure.
Feature 2: Design that responds to the performance needs of machine tools
Improves load capacity through the groove design.
Feature 3: Compact with high rigidity
Achieves higher rigidity and a more compact nut diameter than our conventional products.
Description
THK High-Speed Ball Screw For Machine Tools BSM4030B. online supply . Welcome inquiry.
| Model No. | Screw shaft outer diameter | Lead Ph | Ball center -to-center diameter dp | Thread minor diameter dc | No. of loaded circuits Rows× turns | ||
| Nut mass (kg) | Shaft mass (kg/m) | ||||||
| BSM 3620B | 36 | 20 | 37.75 | 30.4 | 8(2×4) | 4.4 | 7.0 |
| BSM 4020B | 40 | 20 | 42 | 34.1 | 8(2×4) | 5.6 | 8.5 |
| BSM 4025B | 40 | 25 | 42 | 34.1 | 6(2×3) | 4.9 | 8.8 |
| BSM 4030B | 40 | 30 | 42 | 34.1 | 6(2×3) | 5.7 | 8.9 |
| BSM 4520B | 45 | 20 | 47 | 39.1 | 8(2×4) | 6.0 | 10.9 |
| BSM 4525B | 45 | 25 | 47 | 39.1 | 6(2×3) | 5.7 | 11.2 |
| BSM 5020B | 50 | 20 | 52 | 44.1 | 8(2×4) | 5.9 | 13.7 |
| BSM 5025B | 50 | 25 | 52 | 44.1 | 6(2×3) | 5.5 | 14.0 |
| BSM 5030B | 50 | 30 | 52 | 44.1 | 6(2×3) | 6.3 | 14.2 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products ,we can not upload all of them at present.
If you have any demands of BSM4030B , feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
