THK Precision Ball Screw DK 5012-4
For THK Precision Ball Screws, a wide array of precision-ground screw shafts and ball screw nuts
are available as standard to meet diversified applications.
Description
THK Precision Ball Screw Models BIF, DIK, BNFN, DKN, BLW,BNF, DK, MDK, BLK/WGF and BNT online supply .
Model DK 5012-4 Welcome inquiry .

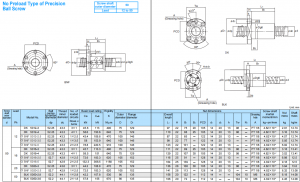

| Screw shaft outer diameter d | ead
Ph | Model No. | Ball center- to-center diameter dp | Thread minor diameter dc | No.of loaded circuits Rowsx turns | d!SICload rating | Rigidity K N/μm | Screw shaft inertial moment/mm kg ·cm²/mm | Nut mass kg | Shaft mass kg/m | |||
| Ca kN | Coa kN | Outer diameter D | Flange diameter ₁ | ||||||||||
|
50 |
12 | DK 5012-3 | 52.25 | 43.3 | 3×1 | 45.8 | 113 | 490 | 75 | 129 | 4.82×10-2 | 2.91 | 12.74 |
| DK 5012-4 | 52.25 | 43.3 | 4×1 | 58.6 | 150.6 | 640 | 75 | 129 | 4.82×10-2 | 3.16 | 12.74 | ||
| O BNF 5012-2.5 | 52.25 | 43.3 | 1×2.5 | 43.4 | 109.8 | 470 | 100 | 146 | 4.82×102 | 4.57 | 12.74 | ||
| O BNF 5012-3.5 | 52.25 | 43.3 | 1×3.5 | 58 | 153.9 | 640 | 100 | 146 | 4.82×102 | 5.05 | 12.74 | ||
| O BNF 5012-5 | 52.25 | 43.3 | 2×2.5 | 78.8 | 220.5 | 910 | 100 | 146 | 4.82×102 | 6.02 | 12.74 | ||
| 16 | DK 5016-3 | 52.25 | 43.3 | 3×1 | 45.7 | 113.3 | 490 | 75 | 129 | 4.82×10-2 | 3.18 | 13.41 | |
| DK 5016-4 | 52.25 | 43.3 | 4×1 | 58.5 | 151 | 640 | 75 | 129 | 4.82×10-2 | 3.52 | 13.41 | ||
| O BNF 5016-2.5 | 52.7 | 42.9 | 1×2.5 | 72.6 | 183.3 | 620 | 105 | 152 | 4.82×102 | 6.98 | 12.5 | ||
| O BNF 5016-5 | 52.7 | 42.9 | 2×2.5 | 132.3 | 366.5 | 1180 | 105 | 152 | 4.82×102 | 9.18 | 12.5 | ||
| 20 | DK 5020-3 | 52.25 | 43.6 | 3×1 | 44.2 | 108.8 | 470 | 75 | 129 | 4.82×10-2 | 3.94 | 13.8 | |
| BNF 5020-2.5 | 52.7 | 42.9 | 1×2.5 | 72.5 | 183.3 | 620 | 105 | 152 | 4.82×102 | 8.32 | 13.08 | ||
| 50 | BLK 5050-2.8 | 52.2 | 44.1 | 1×2.8 | 42.2 | 107.8 | 530 | 90 | 135 | 4.82×102 | 6.18 | 14.08 | |
| BLK 5050-3.6 | 52.2 | 44.1 | 2*1.8 | 44.1 | |||||||||
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products,we can not upload all of them at present.
If you have any demands DK 5012-4 ， feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
