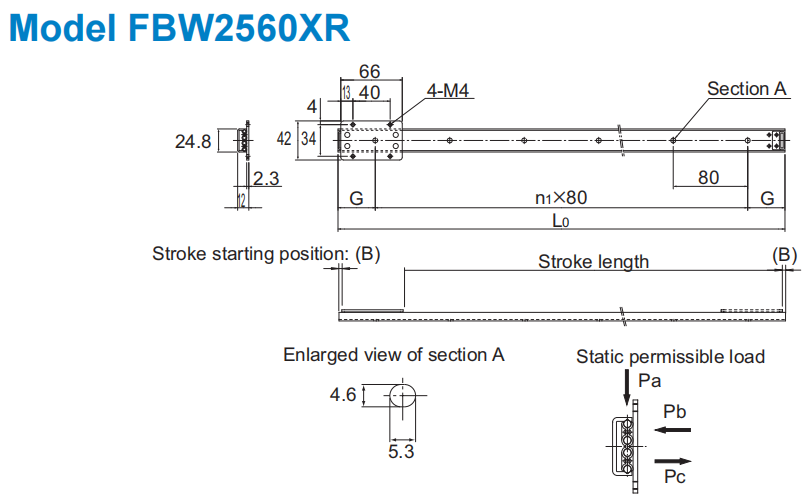

THK Slide Pack FBW 2560XR
Slide Pack model FBW-XR is an LM system in which a precision press molded slider that contains
balls performs infi nite straight motion. Used in combination with a slide rail, the Slide Pack achieves
lightweight and compact design and smooth straight motion.
This product is optimal for light-load slide units in products such as photocopiers, tool cabinets, electronic equipment cabinets, automatic vending machines, machine tool slide covers, cash registers and curtain walls.
HK Slide Pack FBW 2560XR, online supply . Welcome inquiry.

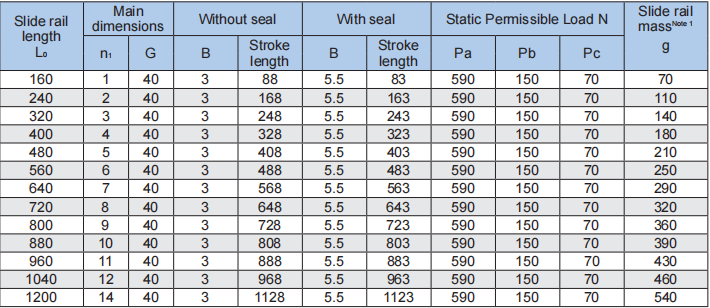

Slide rail length Lo | Main dimensions | Without seal | With seal | Static Permissible Load N | Slide rail massNoe 1 g | |||||
n₁ | G | B | Stroke length | B | Stroke length | Pa | Pb | Pc | ||
160 | 1 | 40 | 3 | 88 | 5.5 | 83 | 590 | 150 | 70 | 70 |
240 | 2 | 40 | 3 | 168 | 5.5 | 163 | 590 | 150 | 70 | 110 |
320 | 3 | 40 | 3 | 248 | 5.5 | 243 | 590 | 150 | 70 | 140 |
400 | 4 | 40 | 3 | 328 | 5.5 | 323 | 590 | 150 | 70 | 180 |
480 | 5 | 40 | 3 | 408 | 5.5 | 403 | 590 | 150 | 70 | 210 |
560 | 6 | 40 | 3 | 488 | 5.5 | 483 | 590 | 150 | 70 | 250 |
640 | 7 | 40 | 3 | 568 | 5.5 | 563 | 590 | 150 | 70 | 290 |
720 | 8 | 40 | 3 | 648 | 5.5 | 643 | 590 | 150 | 70 | 320 |
800 | 9 | 40 | 3 | 728 | 5.5 | 723 | 590 | 150 | 70 | 360 |
880 | 10 | 40 | 3 | 808 | 5.5 | 803 | 590 | 150 | 70 | 390 |
960 | 11 | 40 | 3 | 888 | 5.5 | 883 | 590 | 150 | 70 | 430 |
1040 | 12 | 40 | 3 | 968 | 5.5 | 963 | 590 | 150 | 70 | 460 |
1200 | 14 | 40 | 3 | 1128 | 5.5 | 1123 | 590 | 150 | 70 | 540 |
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products.
Own large spot inventory , Such as THK LM Guide , THK Block , THK Ball Splines ,THK Ball Screws , THK Cam Follower , ect…
There are many types of THK products ,we can not upload all of them at present.
If you have any demands of FBW2560XR, feel free to contact us online or leave a message .
We also have excellent logistics transportation system , It is very convenient for demands of global market .
