YB128 IKO Shell Type Needle Roller Bearing

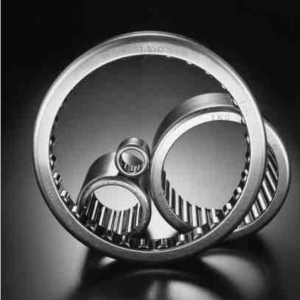

Shell Type Needle Roller Bearings are light
weight bearings with large load ratings. They employ
a shell type outer ring made from a thin special-steel
plate which is accurately drawn, carburized and
quenched, thus providing the lowest sectional height
among the needle roller bearings.
There are two types of bearings available in this
series; the caged type and the full complement type.
The appropriate type can be selected according to the
operating conditions. The caged type has a structure
in which the needle rollers are accurately guided by
the cage and thrust rings. It is useful for applications
at high-speed rotation. The full complement type nee
dle roller bearing, on the other hand, is suitable for
heavy-load applications at low-speed rotation.
Since these bearings are press-fitted into the housing,
no fixtures for axial positioning are needed. They are
ideal for use in mass-produced articles that require
economy, and have a wide variety of applications.
Description
YB128 IKO Shell Type Needle Roller Bearing
| mm inch] | Standard | Mass (Ref.} g | Closed end | Mass (Ref.} g | Identification n Standard | umber Mass Ref.) g | Closed end | Mass (Ref.} g | Greas retained | Mass Ref.) g | |
|
17.462 (“%6) | BA 116 Z BA 118 Z BA 1110 Z BA 1112 Z | 7 9.5 11.8 14 | BAM 116 BAM 118 BAM 1110 BAM 1112 | 8.4 10.8 13.2 15.4 |
YB 1112 |
一 18.3 | |||||
| BHA 117 Z BHA 118 Z BHA1110 Z BHA1112 Z | 11.9 13.7 16 19.3 | BHAM 117 BHAM 118 BHAM 1110 BHAM 1112 | 13.5 15.3 17.6 21 | 二 | 一一一 | ||||||
|
19.050 (4) | BA BA BA BA BA BA | 126 Z 128 Z 1210 Z 1212 Z 1214 Z 1216 Z | 10 13.5 17 20.5 23.5 27 | BAM 126 BAM 128 BAM 1210 BAM 1212 BAM 1214 BAM 1216 | 11.7 15.2 18.6 22 25 28.5 | ||||||
| —— -— -— -— | YB 124 YB 128 YB 1210 YB 1212 | 8.5 17.8 22.5 27 | |||||||||
| BHA 1212 Z | 26.5 | BHAM 1212 | 28.5 | ||||||||
WHCD BEARING CO.,LIMITED as a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of IKO products.Such as IKO LM Guide , IKO Block , IKO Ball Splines ,IKO Ball Screws , IKO Cam Follower , ect…We also have excellent logistics transportation system , It is very convenient for demands of global market .Own large spot inventory .There are many types of IKO products,we can not upload all of them at present,If you have any demands for YB128.feel free to contact us or email us.
